Place of Origin : china
Brand Name : EWIN
Certification : CE ROHS
Model Number : EW-LB10*10CM
colour : RGB ,single colours
customer label : Yes
Size : 300*300*70mm
Control way : Inner or external control
Led quantity : 6leds
Material : Stainless steel+tempered gl
Protection Level : IP68
LED Chip : Epistar
Voltage : DC12V / DC24V
MOQ : 10PCS
Packaging Details : LED tile packing: Standard export packing
Delivery Time : 7-10day after receiving your payment
Payment Terms : T/T, Western Union
Supply Ability : 10000set/Months
Gross Weight : 7.3KG
Lamp Luminous Flux(lm) : 300
CRI (Ra>) : 70
Lamp Luminous Efficiency(lm/w) : 50
Working Temperature(℃) : -20 - 65
Product name : LED Tile
LED Brick Light
RGB LED Brick Light
Size 300x300x70mm
DC24V waterproof IP65
| square LED brick tile light IP67
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Specification | Model |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Led quantity | 6pcs | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Led source | CREE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | Toughened glass | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension | 100*100*70mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Color | white color | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working voltage | DC12/24V | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input power | 0.45W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Drive current | 19mA | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Luminous flux | 27LM | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 50~60Hz | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Beam angle | 45° | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP degree | IP65 outdoor use | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lifespan | ≥50000hours | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working environment | -25°C to 65°C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certificate | CE & RoHS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features: | Two kinds of shell materials:base shell made of stainless steel,toughened glass on the surface. Installation:Install with concrete directly or in recessed box. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Application: | Pedestrian,Mall,Square,Plaza,Club,Hotel,Garden,Beach,fountain(indoor and outdoor are available) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|

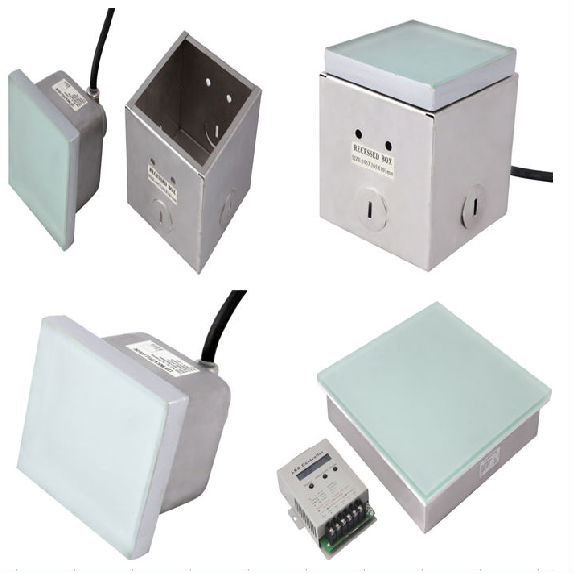

Outdoor Glass bricks 6w 300X300 mm RGB paver led brick light stone Images |
